Capacitive sensor uses a non-contact proximity field to detect a target object.  The technology provide reliable detection without mechanical wear and will outlast any limit switch.  Similar to an inductive proximity sensor but has the capability to detect much more than metallic objects.  Typical targets for capacitives are: wood, plastic, glass, powder and liquids.  Different target materials hold a different dielectric constant, which determines how well it can be detected.  Since water has a much higher dielectric constant than a plastic container, it’s possible to detect the liquid presence through the plastic walls.

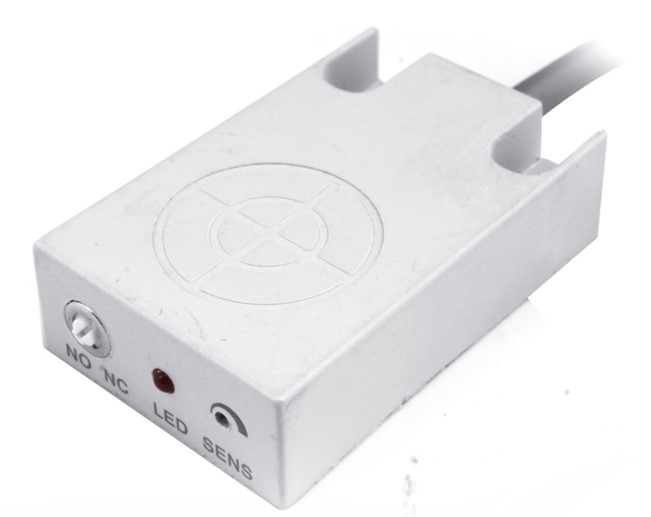

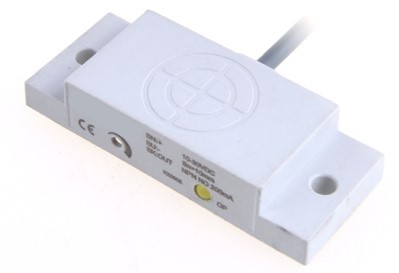

Products CF07                                   CF07 CF34 CF35
Range 5mm 8mm 10mm 10mm
Sensing Type Flush Non-Flush Non-Flush Flush
 pdf logo
Output Options NPN NO CF07-FF-05-NO CF07-NF-08-NO CF34-NF-10-NO CF35-FF-10-NO
NPN NC CF07-FF-05-NC CF07-NF-08-NC CF34-NF-10-NC CF35-FF-10-NC
PNP NO CF07-FF-05-PO CF07-NF-08-PO CF34-NF-10-PO CF35-FF-10-PO
PNP NC CF07-FF-05-PC CF07-NF-08-PC CF34-NF-10-PC CF35-FF-10-PC
Specifications
Supply Power 10…30Vdc 10…30Vdc 10…30Vdc 10…30Vdc
Temperature Drift ≤ ±10% ≤ ±10% ≤ ±10% ≤ ±10%
Hysteresis 3…20% 3…20% 3…20% 3…20%
Repeatability ≤ 3% ≤ 3% ≤ 3% ≤ 3%
Power Consumption ≤ 15mA ≤ 15mA ≤ 15mA ≤ 15mA
Load Current ≤ 200mA ≤ 200mA ≤ 200mA ≤ 200mA
Residual Voltage ≤ 2.5V ≤ 2.5V ≤ 2.5V ≤ 2.5V
Operating Temperature -10…55°C -10…55°C -10…55°C -10…55°C
Indicator LED LED LED LED
Frequency 30Hz 30Hz 30Hz 30Hz
Protection IP 67 IP 67 IP 67 IP 67
Housing Material PBT PBT PBT PBT
Connection 2m PVC cable 2m PVC cable 2m PVC cable 2m PVC cable

CE                                                                                                                   teflon     teflon

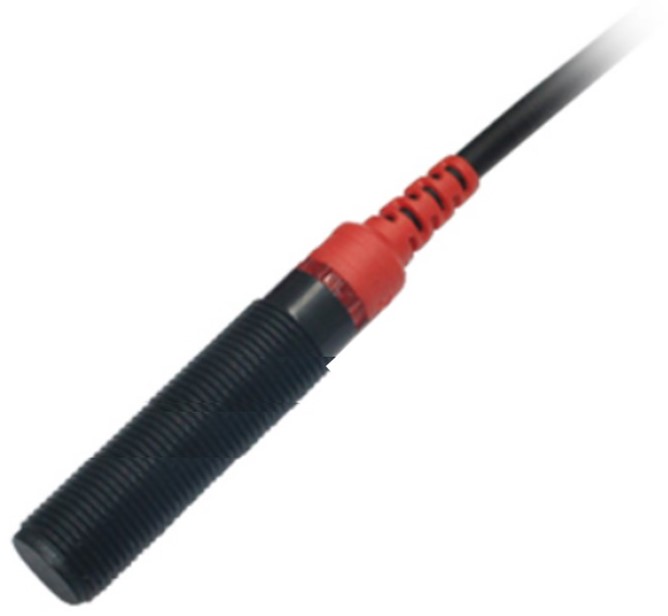

Products CB12                                   CB12 CB18                                   CB18
Range 3mm 5mm 5mm 10mm
Sensing Type Flush Non-Flush Flush Non-Flush

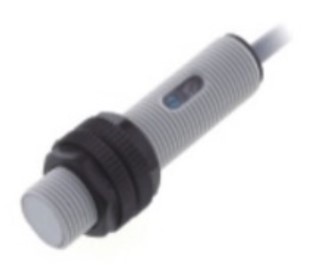

CB12a CB12 CB18 CB18
Output Options NPN NO CB12-FF-03-NO CB12-NF-05-NO CB18-FF-05-NOC CB18T-NF-10-NOC
NPN NC CB12-FF-03-NC CB12-NF-05-NC
PNP NO CB12-FF-03-PO CB12-NF-05-PO CB18-FF-05-POC CB18T-NF-10-POC
PNP NC CB12-FF-03-PC CB12-NF-05-PC
Specifications
Supply Power 10…30Vdc 12…30Vdc 12…30Vdc 12…30Vdc
Temperature Drift ≤ ±10% ≤ ±10% ≤ ±10% ≤ ±10%
Hysteresis 3…20% 3…20% 3…20% 3…20%
Repeatability ≤ 5% ≤ 5% ≤ 5% ≤ 5%
Power Consumption ≤ 15mA ≤ 8mA ≤ 8mA ≤ 8mA
Load Current ≤ 200mA ≤ 200mA ≤ 200mA ≤ 200mA
Residual Voltage ≤ 2.5V ≤ 1.5V ≤ 1.5V ≤ 1.5V
Operating Temperature -25…70°C -20…70°C -20…70°C -20…70°C
Indicator LED LED LED LED
Frequency 50Hz 600Hz 600Hz 600Hz
Protection IP 67 IP 66 IP 66 IP 66
Housing Material PBT ABS Teflon Teflon
Connection 2m PVC cable 2m PVC cable 2m PVC cable 2m PVC cable
