DeviceTherm offers the most cost effective and reliable Photo-Electric sensors on the market. Using optical technology the PUT series provide high positioning accuracy and high-speed switching frequency. It’s ideal for positioning stages and homing your motor/encoder. Contract us if you have additional questions and our technical team will quickly resolve your needs.

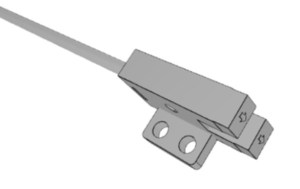

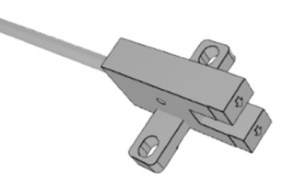

| Mounting Style | Left Mount | Upright Mount | Right Mount |
 |
|
|
|
| Output Options | NPN NO + NC | PUT302-NOC | PUT303-NOC | PUT304-NOC |
| PNP NO + NC | PUT302-POC | PUT303-POC | PUT304-POC |

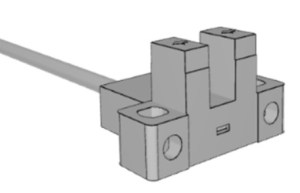

| Mounting Style | Side Flange | L Mount | Front Flange |
|
|
|
|
| Output Options | NPN NO + NC | PUT305-NOC | PUT205-NOC | PUT307-NOC |
| PNP NO + NC | PUT305-POC | PUT205-POC | PUT307-POC |
